The Complete Guide to Basement Waterproofing: Methods, Materials and Mistakes to Avoid  Water seepage in basements is among the most common and expensive problems faced by building owners, contractors, and project engineers. A poorly waterproofed basement can lead to structural deterioration, mold growth, corrosion of steel reinforcement, interior damage, and costly repairs.

As buildings become larger and foundations go deeper, proper waterproofing is no longer optional—it has become a critical component of construction.

This guide explains basement waterproofing systems, available materials, application methods, and the common mistakes that often lead to failures.

Why Basement Leakage Happens

Basement walls and raft foundations remain in direct contact with soil and groundwater. Water constantly attempts to penetrate through:

• Concrete pores

• Construction joints

• Expansion joints

• Honeycombing

• Cracks

• Pipe penetrations

• Cold joints

Concrete may appear solid, but in reality it contains microscopic pores and capillaries that allow moisture movement.

When hydrostatic pressure builds outside the structure, water searches for the easiest route to enter the basement.

Common signs of basement waterproofing failure include:

• Damp walls

• Paint peeling

• Water dripping

• Efflorescence

• Mold growth

• Musty odor

• Rust stains

• Cracks

Ignoring these signs often results in major structural problems.

Types of Basement Waterproofing Systems

1. Positive Side Waterproofing

Positive side waterproofing means applying the waterproofing system on the side directly exposed to water pressure.

Examples:

• External basement walls

• Raft foundations

• Retaining walls

Advantages:

• Prevents water entry before reaching concrete

• Protects reinforcement steel

• Longer service life

• Better structural protection

This is generally considered the preferred approach.

2. Negative Side Waterproofing

Negative waterproofing is applied from the interior side after water has already penetrated concrete.

Examples:

• Internal basement walls

• Existing structures

• Repair applications

Advantages:

• Easier access during renovation

• Lower initial cost

Limitations:

• Does not protect concrete itself

• Lower life expectancy

Common Basement Waterproofing Materials

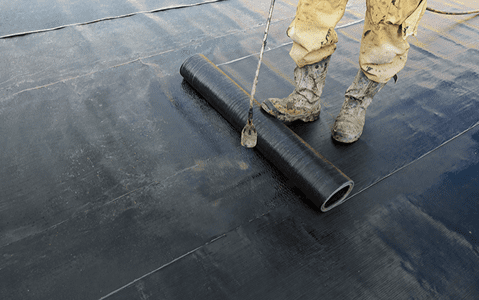

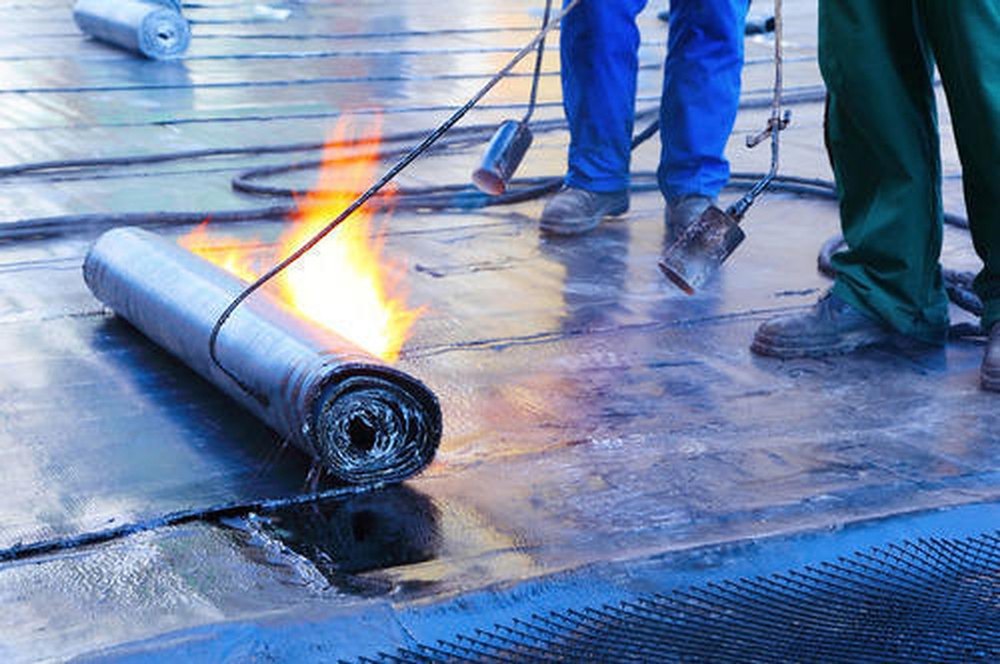

Bituminous Membranes

Bituminous membranes remain among the most commonly used systems for basements.

Benefits:

• Excellent waterproofing performance

• High durability

• Flexible application

• Good puncture resistance

These membranes are available in:

• APP membranes

• SBS membranes

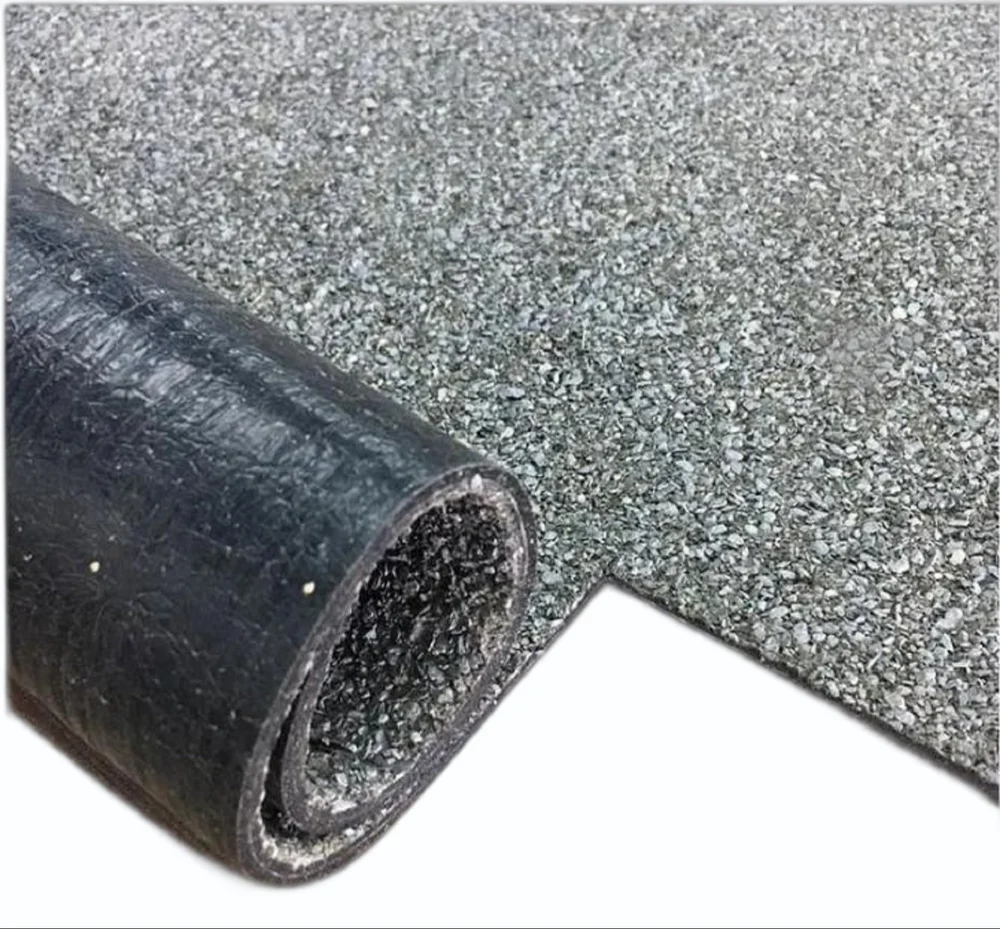

APP Membranes

APP stands for Atactic Polypropylene modified bitumen.

Features:

• High temperature resistance

• Good UV resistance

• Strong durability

• Suitable for exposed applications

Common applications:

• Roofs

• Foundations

• Podiums

SBS Membranes

SBS stands for Styrene Butadiene Styrene modified bitumen.

Features:

• Superior flexibility

• Better crack bridging

• Excellent low-temperature performance

Common applications:

• Basement walls

• Vertical applications

• Areas with movement

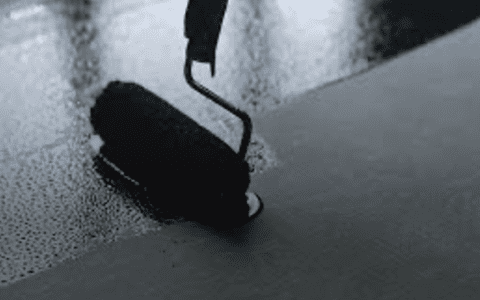

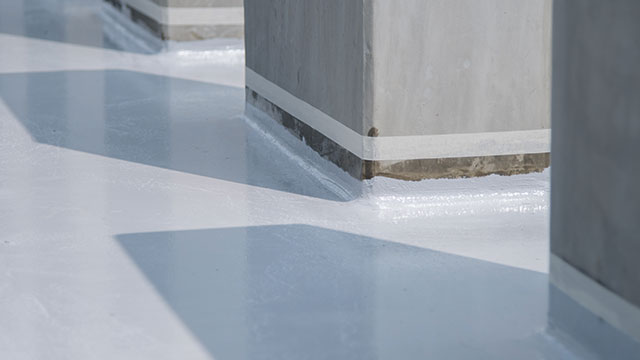

Liquid Applied Waterproofing Systems

Liquid waterproofing systems include:

• Polyurethane coatings

• Acrylic coatings

• Cementitious coatings

Benefits include:

• Seamless application

• Easy detailing around corners

• Fast installation

Limitations:

• Surface preparation is critical

• Thickness control required

HDPE Protection and Drainage Systems

HDPE drainage boards protect waterproofing layers against damage during backfilling.

Benefits include:

• Protection against puncture

• Water drainage

• Reduced hydrostatic pressure

These systems are often used with bituminous membranes.

Recommended Basement Waterproofing System

A typical basement waterproofing system may include:

For Raft Foundation:

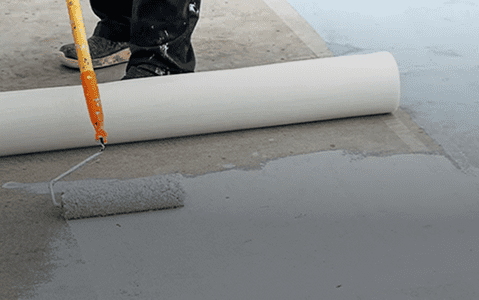

1. Surface preparation
2. Primer application
3. 5 mm APP membrane with polyester reinforcement
4. Protection screed

For Vertical Basement Walls:

1. Surface preparation
2. Primer application
3. SBS membrane application
4. Protection board
5. HDPE drainage membrane
6. Backfilling

Common Waterproofing Mistakes

Poor Surface Preparation

Dust, loose particles, and uneven surfaces reduce membrane adhesion.

Always ensure:

• Clean substrate

• Dry surface

• Smooth finish

Incorrect Membrane Selection

Using roof membranes for basement walls frequently causes failures.

Selection should depend on:

• Water pressure

• Soil conditions

• Movement requirements

• Temperature

Improper Joint Treatment

Construction joints remain the most vulnerable locations.

Typical treatment methods:

• Joint tapes

• Sealants

• Water bars

Insufficient Overlaps

Improper membrane overlap creates leakage pathways.

Recommended overlap:

• Side overlap: approximately 75–100 mm

• End overlap: approximately 100–150 mm

Poor Detailing Around Penetrations

Pipe penetrations and corners require special treatment.

Areas needing attention:

• Pipe entries

• Expansion joints

• Corners

• Drain outlets

Damage During Backfilling

Even properly installed waterproofing systems can fail if damaged during backfilling.

Use:

• Protection boards

• HDPE drainage sheets

• Controlled filling methods

Maintenance Tips for Long-Term Performance

Even the best waterproofing systems require periodic inspection.

Recommended maintenance includes:

• Inspect visible cracks

• Monitor drainage systems

• Check joints

• Repair damaged areas quickly

Early intervention significantly reduces repair costs.

Final Thoughts

Basement waterproofing is an investment in structural durability and long-term building performance. Selecting the correct waterproofing material, ensuring proper application, and avoiding installation mistakes can save significant maintenance costs in the future.

Modern projects increasingly use integrated systems combining membranes, drainage layers, protective boards, and sealants to achieve long-lasting performance.

Whether the project is a residential building, commercial complex, infrastructure project, or industrial structure, choosing the right waterproofing system from the beginning helps avoid expensive failures later.
